How to Use a Soldering Iron? A Beginner’s Guide

A soldering iron is a handheld tool used in electronics and metalwork to join two pieces of metal together using solder. Solder, a fusible metal alloy, melts and flows into the joint, creating a strong and conductive bond. Learning to use a soldering iron is crucial for beginners venturing into electronics, DIY projects, or repairs. It opens up a world of possibilities for creating, repairing, and modifying electronic devices and other items. In this guide, we’ll cover everything beginners need to know on how to use a soldering iron.

We’ll start by looking at the components of a soldering iron, including the heating element, tip, handle, and power source. Next, we’ll understand the importance of safety when working with a soldering iron. Safety glasses, heat-resistant gloves, and proper clothing are essential pieces of personal protective equipment (PPE) to prevent accidents.

Later, we will see step-by-step instructions on the preparation as well as the essential soldering techniques. As a bonus, we will also learn the basic cleaning and maintenance steps you need to follow in order to get the maximum out of your soldering for a long time.

How to Solder? (Watch Video)

Introduction to Soldering

Soldering is the process through which two or more components can be joined together by melting a bit of metal, called as a filler or solder, at the joint. Once the melted solder cools down, it hardens and acts as a glue joining the components together. It not only provides the necessary mechanical strength to hold the components together but also aids in electrical conductivity.

What Can You Solder?

Soldering is usually used in the electronic industry to assemble electrical and electronic components on printed circuit boards (PCBs), connect wires, fix broken circuits, repair radios, TV sets, antennas, etc. However, soldering can also be used to join plumbing, refrigeration jobs, and even jewelry!

The soldering technique was invented to join metals together using a filler material. Noble metals such as gold, silver, tin, etc. offer stronger soldered bonds as compared to other metals because of their low reactivity and high melting points. However, noble metals are expensive and hence the most commonly used solder is an alloy made of 60% tin and 40% lead.

The most difficult metals to solder are aluminum, high alloy and stainless steels, titanium and magnesium. These metals can be soldered with some pre-plating and pre-tinning.

Why Soldering?

Soldering is a technique to attach two components. Would you be better off with an adhesive or would it be best to solder? Find out with the following advantages.

  • Low Heat Impact: The solder is often at a lower melting point than the other components and hence they are not impacted by the heat.
  • Both Permanent and Temporary Joints: Once the solder hardens, it forms a very strong bond which is not breakable. However, you can easily break the bond by a reverse process known as desoldering with no damage to the other components. Both temporary and permanent joints in one!
  • Join Different Materials: You can use soldering to join different metals as long as the solder has a lower melting point.
  • Quick DIY: Soldering is easy to learn and anyone can master it quickly. What’s more, it’s a very quick technique to join stuff together and is great for DIY projects.

What Tools Do You Need for Soldering?

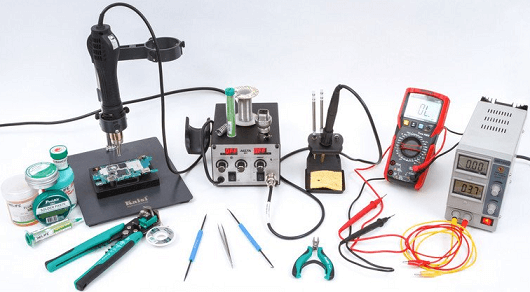

Tools Need for Soldering

The following is a simple list of tools that you will need for soldering projects.

Understanding the Soldering Iron

Before learning how to use a soldering iron, let us quickly take a look at all the important parts of a typical soldering iron. Firstly, the heating element is the core component responsible for generating the heat necessary to melt solder. It is typically made of a durable material like ceramic or nichrome wire.

Secondly, the tip of the soldering iron is the point of contact where heat is applied to the solder. It comes in various shapes and sizes to suit different soldering tasks, such as fine-point tips for precision work or chisel tips for larger joints.

The handle provides a comfortable grip for the user and houses the heating element and wiring. It comes with a good heat insulation to prevent burns during prolonged use.

Lastly, the power source supplies the electrical energy needed to heat the soldering iron. It can be a direct plug into a power outlet or powered by a soldering station.

Types of Soldering Iron

The basic soldering iron is the fundamental tool for soldering tasks, suitable for hobbyists and occasional users. It usually operates at a fixed temperature but some units come with a very rudimentary temperature adjustment feature. The power source of all these units is direct wall supply. These soldering irons are very straightforward to use, making it ideal for beginners.

In contrast, the temperature-controlled soldering iron offers more precision and versatility. With adjustable temperature settings, users can precisely set the heat output to suit different soldering requirements. There will be a main control unit that provides power to the soldering iron based on the temperature setting.

Professionals and enthusiasts, who demand greater control over the soldering process, generally favor this type of soldering iron.

Safety Precautions To Take While Using Soldering Iron

When you are starting your journey into the world of soldering, safety must be the utmost priority. The soldering process involves high temperatures and potentially hazardous materials, making safety precautions crucial.

Here are some precautions to keep in mind.

  • Read all the instructions and guides of the equipment you are using
  • Make sure you stay in a well-ventilated area with proper air circulation
  • Use safety glasses to prevent the solder splatter and fumes from getting into your eyes
  • Keep the work area clean and organized
  • Turn off the soldering iron when not in use
  • Never touch the soldering iron tip when it’s hot. Allow it to cool down
  • Don’t breathe in the fumes. If necessary, use a fumes extraction device (or a smoke absorber)
  • Wash your hands after you are done
  • Store away the equipment safely

How to Use a Soldering Iron?

Choose the Right Solder

Two primary categories of solder are lead-based and lead-free solder. Lead-based solder, traditionally used in electronics, offers excellent conductivity and ease of use. However, due to environmental and health concerns, there has been a shift towards lead-free alternatives.

Lead-free solder eliminates the risks associated with lead exposure, making it a safer choice for both users and the environment. If you are a beginner just starting with soldering, we suggest lead-based solder until you get comfortable with the process.

Once you have enough practice with the equipment as well as the technique, you can move on to lead-free solder. Keep in mind that lead-free solder requires higher melting temperatures and its overall characteristics are different compared to lead-based solder.

Preparation Before Soldering

Now that you know the basics of soldering, here are some things you need to know before you solder.

Firstly, clean the work surface by removing any debris, dust, or residues that could interfere with the soldering process. Secure the workpiece in place to prevent it from moving or shifting during soldering. You can achieve this through clamps, holders, or other securing mechanisms, depending on the size and shape of the workpiece.

The next thing that you need to check is whether you have chosen the right tip for the job. Here’s a guide to selecting the right soldering iron tip. Once you have the correct tip, you have to check whether it is clean or not.

Almost all metals react with oxygen and form an oxidation layer. Soldering iron tips, which work under high temperatures, are no exception to this. The oxidation layer on the soldering tip would reduce the efficiency of the heat transfer.

To clean this, you will need to rub it against the cleaning pad. If it is very badly oxidized, then you might have to apply a tip reactivator. If the tip appears shiny after cleaning or re-activating, then you can take the next step – tinning.

Tinning the soldering iron tip is the final step in preparing the soldering iron for use. To ‘tin’ the tip, you have to apply a small amount of solder to the tip, coating it with a thin layer of solder. This prevents oxidation and improves heat transfer. Tin the tip before and after soldering; you should also tin the tip after every two joints you solder. This will help in maintaining the longevity of the tip.

Step by Step Instructions on How to Use a Soldering Iron

  1. Determine the right temperature for your project which depends on the materials you are soldering and the solder that you are using. As a rule of thumb, choose the lowest temperature possible to get the job done.
  2. Once the iron is heated to the chosen temperature, hold a piece of the solder in one hand and the soldering iron in another.
  3. Hold the hot iron to the place where both the components meet for a second. Note that you need to just heat the metals a little bit.
  4. Now touch the solder to the heated components. The solder will melt and fill in the gap between the two components.
  5. Do not touch the solder to the soldering iron tip. Only to the components. The heat from the soldering iron must melt the solder even if it doesn’t come in contact directly with the tip.
  6. The amount of solder you need varies from project to project (or component to component). If you are a beginner, practice on scrap pieces of electronic components before you start your project.
  7. Leave the solder to cool down. A good connection will appear uniform and strong. There shouldn’t be any gaps or big blobs of solder. If there are gaps, you will need to fill in some more solder. If there are blobs, you must desolder to repair the joint.

Desoldering

You may need to desolder to fix certain kinds of joints. Or you may have accidentally applied too much solder! Not to worry, you just need to reheat the iron to the required temperature and melt the solder. You can use a solder sucker, which looks like a syringe, to suck the excess solder. Another device you can use is a desoldering braid.

Soldering Projects for Beginners

For beginners eager to refine their soldering skills, practice is the only way. There are many DIY Electronics Projects (available both online as well as retail electronics stores) that involve soldering basic components such as resistors, capacitors, and LEDs onto a pre-designed circuit board. Assembling such simple circuit boards allows individuals to familiarize themselves with soldering techniques and electronic components.

By following step-by-step instructions and practicing proper soldering technique, beginners can gain confidence and skill in soldering while creating functional electronic circuits.

Soldering wires to connectors is another practical exercise that provides hands-on experience with soldering while addressing real-world connectivity needs. Whether it’s attaching wires to audio jacks, terminal blocks, or connectors for electronic devices, this task requires precision and attention to detail. Through repetitive practice, beginners can develop the muscle memory and skills necessary to solder wires neatly and efficiently.

Moreover, repairing broken electronic devices offers beginners the opportunity to apply their soldering skills in a practical and meaningful way. You can try to fix a loose connection, replace a damaged component, or repair a broken circuit trace with the help of soldering.

By identifying the issue, desoldering and removing faulty components, and soldering in replacements, beginners can gain valuable troubleshooting and repair skills.

Maintenance of a Soldering Iron

Cleaning the soldering iron tip is an important task to prevent oxidation and buildup of solder residues. At the very least, all you have to do is periodically wipe the tip with a damp sponge or brass wire brush while the soldering iron is hot. This removes any contaminants and restores the tip’s ability to conduct heat efficiently.

Regular cleaning also prevents solder from sticking to the tip, reducing the risk of poor soldering results or damage to components.

Proper storage of the soldering iron is equally important for preserving its condition and functionality. After each use, you have to turn off the soldering iron and allow it to cool down completely before storing it. But before that, don’t forget to tin the tip while the iron is still hot.

Once cooled, you have to store the soldering iron in a clean and dry environment, preferably in a dedicated holder or stand. This protects the soldering iron from dust, moisture, and physical damage

Over time, soldering iron tips may become worn out or damaged due to repeated use and exposure to high temperatures. When signs of wear or deterioration become apparent, it is time to replace the tip. Most soldering irons feature replaceable tips that can be easily swapped out using the appropriate tools.

Frequently Asked Questions

How to use a soldering iron safely?

Wear safety goggles to protect your eyes from splattering solder. Always handle the soldering iron with care, holding it by the insulated handle and keeping your fingers away from the hot tip. Never leave a hot soldering iron unattended, and always unplug it when finished.

What are the risks of soldering?

One of the primary risks of soldering is the potential for burns from the hot soldering iron tip. Inhaling solder fumes can also pose health risks, as they may contain harmful substances such as lead or flux vapors.

Is solder safe to touch?

Solder itself is typically safe to touch once it has cooled and solidified. However, while it is in its molten state, it can cause burns if it comes into contact with the skin. Additionally, some solder may contain lead or other hazardous materials. Wash your hands thoroughly after handling solder to avoid unintentional ingestion.

How to use soldering flux?

Apply a small amount of flux to the joint area before soldering. This can be done using a flux pen, brush, or by dipping the components into flux. Heat the joint with the soldering iron, and then touch the solder to the joint. The flux will help the solder to flow and create a strong bond between the components.

How hot is a soldering iron?

The temperature of a soldering iron can vary depending on the model. However, most soldering irons operate within the range of 300°C to 450°C (572°F to 842°F). Some soldering irons have adjustable temperature settings, allowing the user to customize the temperature based on the requirements of the soldering job.

Conclusion

In conclusion, this guide has provided a comprehensive overview of soldering, equipment necessary for soldering, and a step-by-step process on how to use a soldering iron. Soldering is a skill that improves with experience, and each project offers an opportunity to refine the technique and overcome challenges. We hope that this guide could help you learn the basic usage of soldering iron. Stay tuned for more such interesting tips on electronics projects!
