Applications of Inductor

Like resistors and capacitors, inductors are also passive elements which are used to store the electric energy in the form of magnetic field. Simply an inductor is a wire or coil of a good electric conducting material with few turns (twists) in it.

They will produce the magnetic flux (field) around them by the flow of an alternating current through it. An ideal inductor has no inductive reactance, so it acts as short circuit. In practical, every inductor has some resistance internally which we call as ‘Inductive reactance’.

It is measured in ohms. When the inductive reactance of a coil is very high then the circuit acts as an open circuit and allows maximum current through it. Inductance is the phenomenon of an inductor that opposes the flow of current in the circuit, by generating the back EMF. This inductance is measured in Henry.

Inductors are of many types like air cored, iron cored, coupled or differential type and many more. Based on the requirement, inductors have many applications in electrical transmission.

Inductors in Tuned Circuits

Inductors are used in tuning circuits which are used to select the desired frequency. In a tuned circuit, we have capacitor connected along with the inductor, either in parallel or series. The frequency of the tuning circuit at which the capacitive reactance is equal to the inductive reactance (XC = XL) is called ‘Resonant Frequency’.

Inductors in Tuned Circuits

The series resonance circuits are used in many electronic circuits like television , radio tuning circuits and filters to vary the frequency and selecting the various frequency channels.

Inductive sensors

Inductors are used in proximity sensors which work on the principle of inductance. We know that inductance is the phenomenon in which , the magnetic field produced in the coil , will oppose the flow of current in it. So thus the inductance will restrict the current flow and reduces the circuit performance.

For better performances we need to amplify the current in the circuit. We use proximity sensors to find the level of amplification factor at which we need to amplify the current.

The manufacturers design the sensors by twisting the wire into a tight coil. There are 4 components in the inductive proximity sensor; they are an inductor or coil, an oscillator, a detection circuit and an output circuit.

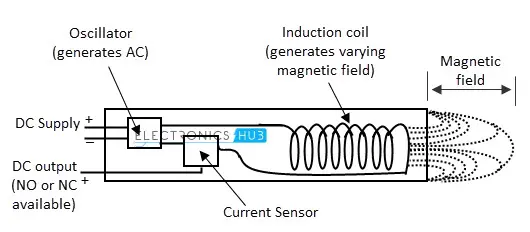

In the inductive proximity sensor, a fluctuating magnetic field is generated by oscillator around the winding of coil, which locates in the sensing face of the device.

Inductive sensors

When an object moves in the field of inductive proximity area of detection, eddy currents starts building up in the metal object which will reduce the inductive sensor’s magnetic field.

Strength of the oscillator is monitored by the detection circuit and an output is triggered from the output circuitry , when the oscillations are below the sufficient level.

The inductive proximity sensor is a contactless sensor and is very reliable in operation. The inductive sensors are used at traffic lights to detect the traffic density.

Energy Storage Devices

We can store the energy in passive elements like capacitor and inductors. Inductors can store energy for a limited time. As the inductors store the energy in the form of magnetic field, it will collapse when we remove the power supply.

The inductors functions as energy storage devices in switch mode power supplies (generally we use in our computers). In these type of power supplies, the output voltage ratio depends upon the charging time of the inductor.

Induction Motors

The well known and wide range application of inductors is Induction motors. In these induction motors or asynchronous motors, the inductors are in fixed position and they did not allowed to move in nearby magnetic field.

Induction motors converts the electrical energy into mechanical energy. The shaft in the motors will rotate because of the magnetic field produced by the alternating current.

The speed of the motor is fixed as it depends on the frequency of the power supplied from source. So we use inductors in these motors to control the speed by connecting them in series or parallel to shaft. These induction motors are very reliable and robust.

Transformers

Transformer is another popular application of inductors. By combining the inductors of shared magnetic field, we can design a transformer. Transformer is the basic and fundamental component of the power transmission system.

These are used to increase or decrease the power in transmission lines to required level, as step up and step down transformers respectively. In the transformers, the inductor (wire) is wounded to the core as primary and secondary windings.

The impedance of the inductor increases with increase in the frequency of supply. The impedance produced in the inductor will limit the effectiveness of transformer. In general, the inductance based transformers are limited to very low operational values.

Inductive Filters

Inductors and capacitors are combinely used to form filters. The filters are the electronic devices which are used to limit the frequency of the input signal entering to a circuit. There are many types of filters like low pass filter, high pass filter, band pass filter, notch filter etc which are designed by using inductors.

As the frequency increases, the impedance of the inductor also increases. Then the properties of filter will change according to the impedance value. There are many number of filter topologies we can create by using inductors.

Chokes

Inductors are also used as chokes. We know that the inductors will create an opposite current flow, when the alternating current flows through it. This means the inductors will choke the AC current and allows DC current to pass. This property of inductors is used in power supply circuits, where AC supply need to be converted to DC supply.

Ferrite beds

Generally we see the ferrite beds in computer cables and mobile chargers etc. these ferrite beds use inductors to reduce the radio frequency interference created by the cables.

Relays

A relay is like an electrical switch. It uses inductor coil to control the current flow in it. When the AC current flows through the inductor of the relay, it produces a magnetic field which effects the switch contacts.

Relays
