Wrench Sizes And Measurements Chart

When it comes to managing the wrench sizes, it is relatively easier than the sockets. It’s because sockets involve different ratchet drive sizes, but the wrenches don’t. However, you still need to have some basic pipe information to arrange them or correctly use them.

If you want to know about different sizes of wrenches, you can read below. We have also included conversion charts to convert the wrench size and measurement from metric to SAE and vice versa. So, let’s get started.

Wrench Sizes And Measurements Chart:

Wrench Size Chart (SAE to Metric)

In most cases, your average wrench set won’t have every single wrench size available. And you would be using some commonly available wrench sizes. So, understanding or differentiating between them won’t be much of a problem.

For example, a car mechanic would use different types of wrench sizes. And a cycle mechanic, on the other hand, will use a limited set of wrenches. It all depends on what you are going to use it for. However, sometimes due to the different measurement units, you might not be able to make the correct choice.

In such situations, you can read through the below-listed wrench size conversion chart. It’ll help you convert the units from SAE to metric for easy identification.

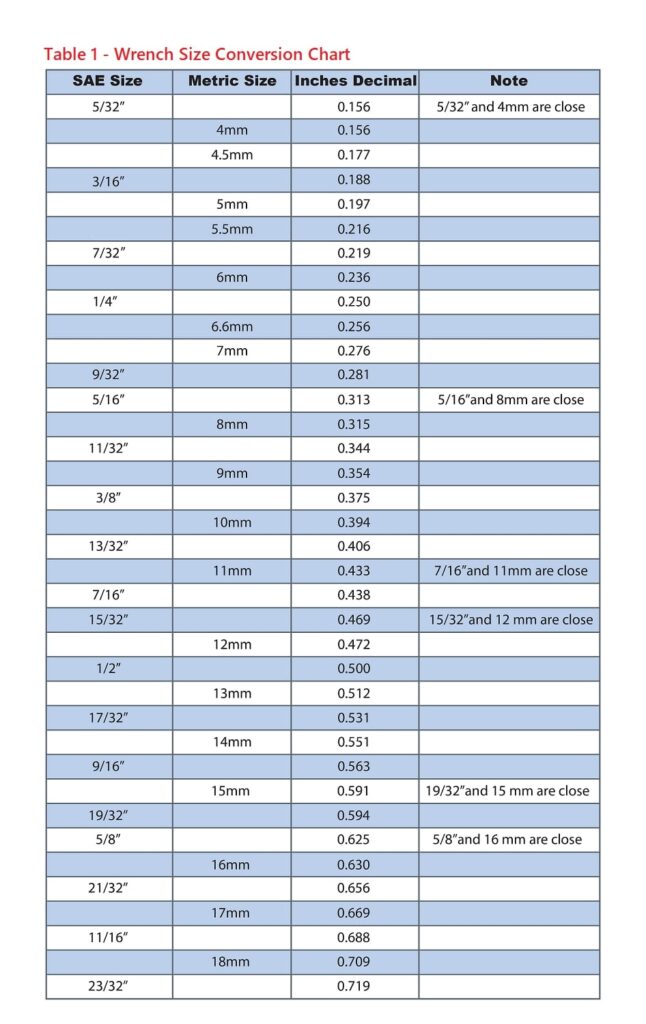

Wrench Size Conversion Chart

wrench size 2wrench size 2

If you’re located somewhere in the US, you’re more likely to have SAE wrenches in your set. And people from other places will mostly have metric wrenches in their kits. Using the above wrench conversion chart, you can find the correct fitting standard or wrench for your bolt size.

Bolts are less likely to strip while fastening than screws or nuts when you’re using a substitute wrench. So, the risk of messing up the job reduces if you use the correct tool of the correct size. However, it’s always preferred to use metric wrenches on metric hardware, and the SAE wrenches on SAE ones.

How to find the right wrench size?

While reading the above wrench conversion chart, make sure to check the bolt you’re fastening. It’ll help you find the right options for metric and SAE wrenches. Take an example of a bolt of size 9/16 inches. For this bolt, you’ll have two options for wrench size on both of the measurement scales. And if you’re in such a situation, you’ll have to use and try all of the possible wrench sizes to find the correct one.

Converting the wrench sizes for metric bolts

When finding the correct wrench size for a metric bolt, the conversion is easy. Once you find the wrench(metric) you want to choose, find its equivalent in the SAE chart. You may find that the metric side of the chart has some gaps. But that’s alright as we have included all the commonly used sizes except the 18mm. And the counterpart for 18mm is 45/64″. So, you don’t have to worry.

Converting wrenches of smaller sizes

You can also search for the right spanner size if you didn’t find it here. Here’s a SAE to metric and metric to SAE chart for hex key. However, make sure that you go through all the instructions because replacing small wrenches is harder than the larger ones. Also, the chances of smaller parts getting damaged are more.

Wrench Size Chart for Bolts

Below you’ll find a brief conversion of wrench sizes for different bolts. Check out which bolt you’re using from the list of diameters that we’ve listed below. Once you do, you can find the SAE wrench size that you should use for the bolt, followed by the metric wrench listed in the last column.

wrench size 4

Wrench Sizes – FAQs

1. What is the method for measuring the size of a wrench?

Ans: Wrench size is measured by the width across flats, imprinted on the spanner in millimeter (mm) values. In some cases, older British and current US wrenches may have inch sizes imprinted in intermediate fractions.

2. Which wrench drive size is the most commonly used?

Ans: The most common wrench drive sizes are 1/4 inch for smaller sockets and precision work, 3/8 inch for general use on a car, and 1/2 inch for nuts and bolts starting from around 10mm and up.

3. How does SAE differ from metric in terms of measurements?

Ans: Metric sockets and wrenches are labeled with sizes in millimeters (mm), while SAE sockets and wrenches are labeled with sizes in inches.

4. What is the typical size range for socket wrenches?

Ans: Socket wrenches typically come in four common drive sizes: 1/4 inch, 3/8 inch, 1/2 inch, and 3/4 inch, with a small lever on the ratchet head for switching between tightening and loosening modes.

Conclusion

If you’re a mechanic or deal with sockets and wrenches, you should know the size of the tools that you use. It’ll not only help you precisely arrange them but also comes in handy when you need a job done quickly.

However, there are different sizes and measurements based on where you live. But you’ll most probably have either SAE or the metric set of tools. And fortunately, you can find the right counterpart for both of them by going through our wrench size conversion charts. So, whether you use metric tools or SAE, you can convert them as per the requirements.
