What Are Causes For Porosity In Welding? – How To Prevent It?

Ever had a weld that looked perfect only to find tiny holes in it later? That’s porosity, one of weld defects and it’s a common problem in welding. It can weaken your welds and make them less reliable.

In this blog post, we’ll explore the causes of porosity and provide practical tips on how to prevent it. We’ll cover things like using the right welding technique, maintaining your equipment, and controlling the welding environment. By the end, you’ll have a better understanding of porosity and be equipped to create stronger, more durable welds.

What Is Welding Porosity?

Welding porosity refers to small gas pockets or voids that form within the weld metal during the welding process. These gas pockets occur when gasses get trapped in the molten weld pool and don’t escape before the metal solidifies. The result is a weld that contains small holes, which can weaken the overall structure.

Porosity in welds is undesirable because it reduces the strength and durability of the weld. When a weld contains porosity, it can lead to cracking, corrosion, and even failure of the welded structure. The appearance of these gas pockets can vary, from tiny pinholes visible on the surface to larger voids that are hidden beneath the surface.

Porosity can be found in different types of welding processes, including MIG (Metal Inert Gas) welding, TIG (Tungsten Inert Gas) welding, and stick welding. Each process can produce different types of porosity, depending on the materials used, the technique applied, and the conditions under which the welding is done.

Types Of Welding Porosity

Porosity in welding can be classified into several types based on where the voids occur and how they form. Here are the types of porosity defects in welding:

Surface Porosity

Surface porosity is visible on the outer layer of the weld bead. It occurs when gas fails to escape the molten metal before it solidifies, resulting in tiny holes or clusters on the weld’s surface. Common causes include improper shielding gas flow, contamination from oil or dirt on the workpiece, or excessive moisture. Surface porosity is often easy to spot, but it compromises the weld’s appearance and integrity.

Subsurface Porosity

Subsurface porosity is hidden beneath the surface of the weld. Unlike surface porosity, this type isn’t visible to the naked eye and can only be detected through non-destructive testing methods like X-rays. Subsurface porosity occurs when gas is trapped deeper within the weld metal, usually due to issues like inadequate shielding gas or poor weld pool control. This type of porosity weakens the weld internally, leading to potential failures under stress.

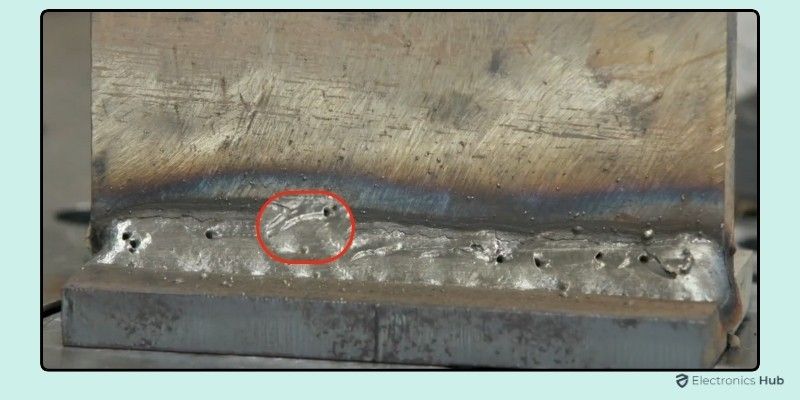

Wormholing

Wormholing, also known as linear porosity, is a form of subsurface porosity that appears as a series of elongated gas pockets within the weld. These cavities resemble wormholes and run along the weld’s length. Wormholing typically occurs due to a lack of fusion between the weld metal and the base material, often caused by incorrect welding parameters or poor technique. This defect significantly reduces the weld’s strength and can lead to structural failure.

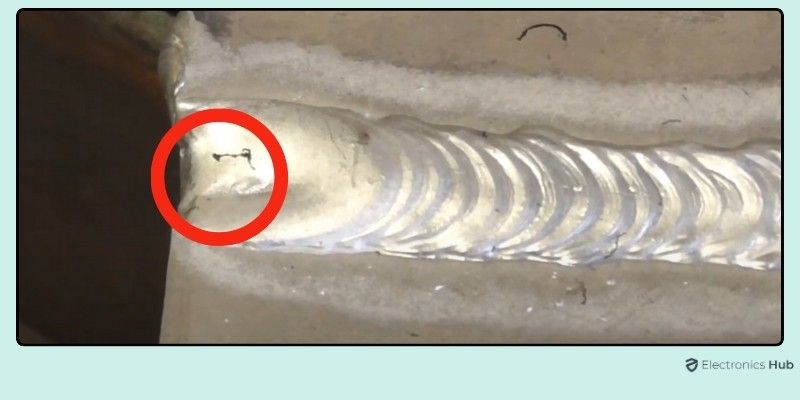

Cratering

Cratering occurs at the end of a weld bead when the molten metal cools too quickly, trapping gas in the final weld pool. This rapid cooling creates a small depression or “crater” in the weld, which may contain porosity. Cratering usually happens when the arc is broken too abruptly, preventing the gas from escaping smoothly. Proper weld termination techniques can help prevent this type of porosity.

What Are The Possible Causes For Porosity In Welding?

Porosity in welding can arise from various factors that disrupt the smooth formation of the weld. These issues often stem from improper techniques, material contamination, or environmental conditions that allow gas to become trapped in the weld metal. Identifying and addressing these causes is key to producing strong, defect-free welds.

• Contamination Of The Workpiece: Contamination on the workpiece surface, such as oil, grease, rust, or dirt, can introduce unwanted gases into the weld pool. When these contaminants burn off during welding, they release gases that can become trapped in the weld metal. Cleaning the workpiece thoroughly before welding is necessary to minimize the risk of porosity.
• Improper Shielding Gas Flow: The shielding gas plays a role in protecting the weld pool from atmospheric gases like oxygen, nitrogen, and hydrogen. If the flow of shielding gas is too low or too high, it can lead to porosity defects in welding. Low flow allows atmospheric gases to enter the weld pool, while high flow can create turbulence, drawing in air. Ensuring the correct gas flow rate for the specific welding process helps to prevent this issue.
• Moisture In The Welding Area: Moisture, whether from the air, the workpiece, or the welding consumables, can introduce hydrogen into the weld pool. Hydrogen is a gas that easily becomes trapped, leading to porosity in welds. Storing materials in a dry environment and avoiding welding in damp conditions can reduce the likelihood of moisture-related porosity.
• Incorrect Welding Parameters: Welding parameters, such as voltage, current, and travel speed, must be set correctly to avoid porosity defects in welding. For example, excessive travel speed can cause the weld pool to solidify too quickly, trapping gas inside. On the other hand, too slow a speed can allow more time for gas absorption from the surrounding atmosphere. Properly adjusting the welding parameters according to the material and welding process is necessary to reduce porosity.
• Poor Electrode Or Filler Material Storage: Welding electrodes and filler materials can absorb moisture if not stored properly. This absorbed moisture releases gas when exposed to the heat of welding, leading to porosity in welds. Keeping electrodes and filler materials in a dry, controlled environment, and using them promptly after removing them from storage, can help prevent moisture-related porosity.
• Incorrect Use Of Shielding Gas Mixtures: Different welding processes require specific shielding gas mixtures to prevent porosity in welds. Using the wrong gas mixture, or not adjusting the mixture for the specific material and welding conditions, can lead to gas entrapment in the weld pool. Selecting the appropriate shielding gas and ensuring it is correctly mixed and delivered is important to avoid porosity.
• Arc Instability: Arc instability can cause fluctuations in the weld pool, leading to gas becoming trapped as the metal solidifies. Factors such as inconsistent arc length, poor grounding, or unstable power supply can contribute to arc instability. Maintaining a stable arc by ensuring good contact, consistent power supply, and proper welding technique reduces the chances of porosity.
• Environmental Conditions: Welding in windy or drafty environments can disturb the shielding gas, allowing atmospheric gases to enter the weld pool and cause porosity defects. Similarly, welding in cold conditions can cause the weld metal to cool too rapidly, trapping gas. Controlling the welding environment by using windbreaks or welding indoors when possible can help prevent porosity caused by environmental factors.
• Use Of Damaged Or Worn Equipment: Damaged or worn welding equipment, such as gas hoses, nozzles, or regulators, can lead to improper gas flow, resulting in porosity defects. Regular inspection and maintenance of welding equipment ensure that it operates correctly and provides adequate protection against gas entrapment.

How To Prevent Porosity In Welding?

Preventing porosity in welding requires a combination of proper preparation, technique, and equipment maintenance. By addressing the common causes of porosity, it’s possible to produce welds that are strong, durable, and free of defects. This section will outline key strategies for preventing porosity in welding. Each of these strategies plays a role in ensuring that gases do not become trapped in the weld metal, thus maintaining the integrity of the weld.

Pre-weld treatment

Pre-weld treatment involves preparing the workpiece and welding materials to minimize the risk of porosity in welding. This preparation includes thoroughly cleaning the surfaces to remove any contaminants such as oil, grease, rust, or dirt. These substances can introduce gasses into the weld pool, leading to porosity defects. By using appropriate cleaning methods, such as degreasing, grinding, or wire brushing, the workpiece becomes free of impurities that could otherwise compromise the weld.

Additionally, pre-weld treatment extends to the storage and handling of welding consumables like electrodes and filler materials. Ensuring that these materials are stored in a dry, controlled environment helps prevent moisture absorption, which can introduce hydrogen into the weld pool and cause porosity. Proper handling, along with the use of clean and well-maintained tools, reduces the likelihood of gas entrapment during welding, leading to higher-quality welds.

Use Correct Welding Technique

Using the correct welding technique is key to preventing porosity in welding. Proper technique ensures that the weld pool is protected from atmospheric gases and that the gas within the pool has time to escape before the metal solidifies. For example, maintaining the correct arc length is important in shielding gas welding processes like MIG welding. A too-short arc length can cause turbulence in the weld pool, while a too-long arc length may reduce the effectiveness of the shielding gas, both of which can lead to porosity.

In addition, the angle and speed at which the torch or electrode is held can significantly impact the quality of the weld. Holding the torch at the wrong angle can lead to uneven heating of the workpiece and poor gas coverage, which increases the risk of trapping gas in the weld. Likewise, moving the torch too quickly or too slowly can either trap gas by not allowing it time to escape or expose the weld pool to atmospheric gasses for too long. Properly controlling the torch angle, speed, and arc length, tailored to the specific welding process and material, reduces the chances of porosity and results in a cleaner, stronger weld.

Reduce Arc Time

Reducing arc time during welding is another strategy to prevent porosity in welds. Arc time refers to the duration that the arc is maintained while creating the weld. Prolonged arc time increases the exposure of the molten weld pool to atmospheric gasses, which can become trapped in the metal as it solidifies, leading to porosity defects.

By minimizing arc time, you limit the amount of time the weld pool is exposed, reducing the chances of gas entrapment. This approach requires careful control over the welding speed and technique. Efficiently managing arc time involves moving the electrode or torch steadily and consistently, ensuring that the weld is completed without unnecessary delay. Shorter arc times also help prevent overheating, which can exacerbate porosity issues by increasing the rate of gas absorption into the molten metal.

Maintain Welding Equipment Properly

Proper maintenance of welding equipment is key to preventing porosity in welding. Equipment such as gas hoses, regulators, torches, and electrodes need to be regularly inspected and maintained to ensure they function correctly. Damaged or worn-out equipment can lead to issues like improper shielding gas flow, which allows atmospheric gasses to enter the weld pool, causing porosity. For instance, a cracked gas hose or a faulty regulator might result in inconsistent gas coverage, leaving the weld pool vulnerable to contamination.

Regular cleaning of nozzles, torches, and other components also helps prevent blockages that could disrupt the flow of shielding gas. It’s important to replace worn parts promptly and ensure all connections are secure and free of leaks. Consistent equipment maintenance not only prolongs the lifespan of the tools but also ensures that the welding process runs smoothly, reducing the risk of defects like porosity in welds.

Store Stick Electrodes Properly

Proper storage of stick electrodes is necessary to prevent porosity in welding. Stick electrodes are highly susceptible to moisture absorption, which can introduce hydrogen into the weld pool. This absorbed moisture, when exposed to the heat of welding, turns into gas and becomes trapped in the molten metal, leading to porosity defects.

To avoid this, electrodes should be stored in a dry, temperature-controlled environment. Many welders use storage ovens specifically designed to keep electrodes at a consistent temperature, ensuring they remain dry. If electrodes have been exposed to moisture, they may need to be dried in a reconditioning oven before use. Using fresh, properly stored electrodes ensures a clean, strong weld with minimal risk of gas entrapment and porosity.

How To Select The Right Type Of Shielding Gas

Choosing the correct type of shielding gas is important for preventing porosity in welding. Shielding gas protects the molten weld pool from atmospheric gases such as oxygen, nitrogen, and hydrogen, which can cause porosity if they become trapped in the weld metal. Different welding processes and materials require specific types of shielding gases to ensure proper coverage and protection.

For example, MIG welding often uses a mixture of argon and carbon dioxide, while TIG welding typically uses pure argon. The selection of shielding gas should be based on the material being welded, the welding process, and the desired weld characteristics. Using the wrong gas or an improper mixture can lead to poor gas coverage, allowing contaminants to enter the weld pool and causing porosity defects. By selecting the appropriate shielding gas and ensuring it is delivered at the correct flow rate, the risk of porosity can be significantly reduced, leading to cleaner and stronger welds.

Check Your Gas Flow

The shielding gas protects the molten weld pool from atmospheric contamination, but if the flow rate is incorrect, it can lead to issues that cause porosity. Too low a gas flow rate may allow oxygen, nitrogen, or hydrogen to enter the weld pool, resulting in trapped gas pockets. On the other hand, a flow rate that is too high can create turbulence in the weld pool, drawing in unwanted air and leading to similar defects.

Regularly checking and adjusting the gas flow rate is necessary to ensure consistent protection throughout the welding process. The correct flow rate varies depending on the type of shielding gas, the welding process, and the environmental conditions. Additionally, monitoring the gas delivery system for leaks or blockages is important, as these issues can disrupt the flow and reduce the effectiveness of the shielding gas.

Choose The Correct Gas Hose

The gas hose plays a key role in delivering shielding gas to the weld pool, making it a critical component in preventing porosity in welding. A gas hose connects the gas supply to the welding torch or nozzle, ensuring a steady flow of shielding gas that protects the molten weld from atmospheric contamination. The choice of gas hose affects the consistency and reliability of gas delivery, directly impacting the weld quality.

Selecting the correct gas hose involves considering factors such as the hose material, length, and diameter. The material should be compatible with the type of shielding gas being used, as some gasses can cause degradation in certain hose materials, leading to leaks or reduced gas flow. The hose length and diameter also need to be appropriate for the specific welding setup; too long or too narrow a hose can reduce gas flow or create pressure drops, compromising the effectiveness of the shielding gas.

Regular inspection and maintenance of the gas hose are important to detect any wear, damage, or leaks that could lead to porosity defects. By choosing the correct gas hose and maintaining it properly, the delivery of shielding gas remains consistent, helping to prevent porosity and ensure high-quality welds.

Check Workspace Environment

The workspace environment has a direct impact on the quality of welding, particularly when it comes to preventing porosity in welds. Environmental factors such as wind, humidity, and temperature can disrupt the shielding gas and allow contaminants to enter the weld pool, leading to gas entrapment and porosity.

Welding in a windy or drafty area can cause the shielding gas to disperse, reducing its effectiveness in protecting the weld pool from atmospheric gasses. To mitigate this, welding indoors or using barriers to block wind can help maintain a stable shielding gas coverage. Additionally, high humidity levels introduce moisture into the welding environment, which can lead to hydrogen-induced porosity. Controlling humidity, either by working in a controlled environment or using dehumidifiers, helps reduce this risk.

Consider Pre And Post Heating The Welded Metals

Pre and post-heating the welded metals can be an effective way to prevent porosity in welds. Preheating involves warming the metal before welding, which helps reduce the temperature difference between the weld area and the surrounding material. This process allows the weld pool to stay molten longer, giving trapped gasses more time to escape before the metal solidifies. Preheating is particularly beneficial when working with thicker metals or materials prone to cracking, as it promotes a more controlled cooling process.

Post-heating, on the other hand, involves applying heat to the weld after it has been completed. This process slows down the cooling rate, reducing the chances of gasses becoming trapped within the weld as it solidifies. Post-heating can also relieve stresses within the weld, which can help prevent defects like porosity. Both pre and post-heating should be tailored to the specific material and welding process to achieve the best results, ensuring a clean and strong weld with minimal porosity.

Identify Porosity-Prone Welding Processes

Certain welding processes are more prone to porosity due to the way they interact with the materials and shielding gasses involved. Recognizing these processes can help in taking specific precautions to minimize the risk of gas entrapment.

MIG welding, for instance, is particularly susceptible to porosity if the shielding gas flow is not properly managed. The process relies on a continuous feed of wire and a consistent flow of shielding gas to protect the weld pool. Any disruption in gas flow, whether due to leaks, incorrect gas mixtures, or environmental factors, can introduce porosity into the weld.

TIG welding also requires precise control over the shielding gas, but it generally produces cleaner welds due to its slower process and better gas coverage. However, improper gas flow or contaminated electrodes can still lead to porosity.

Stick welding (or SMAW) is another process where porosity can occur, especially if the electrodes are not properly stored or have absorbed moisture. The process generates a flux that creates its own shielding gas, but if the arc is too short or the workpiece is contaminated, porosity can result.

Flux-cored arc welding (FCAW) combines elements of both MIG and stick welding, and while it can be less prone to porosity in some cases, poor technique, contaminated materials, or inadequate gas coverage can still lead to defects.

Identifying the specific welding process being used and understanding its tendencies toward porosity allows for better preparation and technique adjustments, reducing the likelihood of encountering this defect.

Harms Of Porosity In Welding

Porosity in welding can have several detrimental effects on the quality and strength of a weld. The presence of gas pockets or cavities within the weld metal weakens the structure and can lead to various issues that compromise the integrity of the welded joint. Here’s a breakdown of the potential harms caused by porosity:

• Reduced Weld Strength: Gas pockets weaken the weld metal, reducing its overall strength. This can make the weld more susceptible to stress and potential failure under load.
• Decreased Durability: Porosity can lead to reduced durability of the weld, making it more prone to wear and tear over time. This can be particularly problematic in high-stress or high-impact applications.
• Compromised Appearance: Porosity affects the visual quality of the weld, creating an uneven surface and detracting from the aesthetic appeal. This can be a concern in applications where appearance is important, such as in decorative or visible welds.
• Increased Risk Of Cracking: The presence of gas pockets can create stress concentrations within the weld metal, which increases the risk of cracking, especially under thermal or mechanical stress.
• Potential For Corrosion: Porosity can expose the weld metal to environmental elements, leading to increased susceptibility to corrosion. The cavities created by porosity can become sites for rust and degradation over time.
• Higher Maintenance Costs: Welds with porosity may require additional maintenance or repairs to ensure they meet structural requirements. This can lead to increased operational costs and downtime.

For these reasons, preventing and controlling porosity in welding is important to ensuring that welded joints are strong, durable, and reliable.

How To Identify Porosity In Welded Material?

Identifying porosity in welded material is necessary for assessing the quality and integrity of the weld. Several methods can be used to detect porosity, ranging from visual inspections to more advanced non-destructive testing techniques.

Visual Inspection is the first step in identifying surface porosity. Small holes, clusters, or irregularities on the weld bead’s surface can indicate the presence of porosity. Surface porosity is usually visible to the naked eye and may appear as small pin holes or clusters of bubbles on the weld’s exterior. However, visual inspection alone may not detect subsurface porosity, which is hidden beneath the weld surface.

Non-Destructive Testing (NDT) methods are used to identify subsurface porosity that is not visible through visual inspection. Common NDT methods include:

• X-ray Inspection: X-rays are used to penetrate the weld and reveal internal defects such as subsurface porosity. This method provides a clear image of the weld’s internal structure, allowing for accurate detection of gas pockets within the metal.
• Ultrasonic Testing: Ultrasonic waves are transmitted through the weld, and the reflected waves are analyzed to detect any internal discontinuities. Subsurface porosity appears as irregularities in the wave patterns, indicating the presence of gas pockets within the weld.
• Dye Penetrant Testing: For surface porosity, dye penetrant testing involves applying a colored dye to the weld surface, which penetrates any surface defects. After removing excess dye, a developer is applied, which draws out the dye from the defects, making surface porosity more visible.
• Magnetic Particle Testing: This method is used primarily for ferromagnetic materials. The weld is magnetized, and magnetic particles are applied. These particles accumulate around surface or near-surface porosity, making it easier to detect.

Identifying porosity early in the inspection process helps in making informed decisions about whether a weld needs repair or replacement, thereby preventing potential failures and ensuring the reliability of the welded structure.

FAQs:

Conclusion

In conclusion, porosity in welding is a common defect that can significantly compromise the integrity and performance of welded structures. Understanding the various causes, such as improper gas shielding, contamination, excessive heat input, and incorrect welding techniques, is crucial for effective prevention. By implementing appropriate measures, such as ensuring proper gas flow, cleaning surfaces thoroughly, controlling heat input, and using correct welding parameters, welders can significantly reduce the occurrence of porosity and produce high-quality welds. Let us know in the comments if this guide is helpful.
