The maximum number of outlets that a 30-amp breaker can support depends on the power requirements of those outlets. A 30-amp breaker is made to handle a specific amount of electrical load. A 30-amp breaker typically handles eight to twelve outlets, making it suitable for multiple outlets in residential or light commercial settings.
The wattage of each device plugged into these outlets must be taken into account, though, as going over the breaker’s capacity can result in electrical hazards. A licensed electrician can provide advice on safe and code-compliant installation, guard against possible overloads, and guarantee effective power distribution.

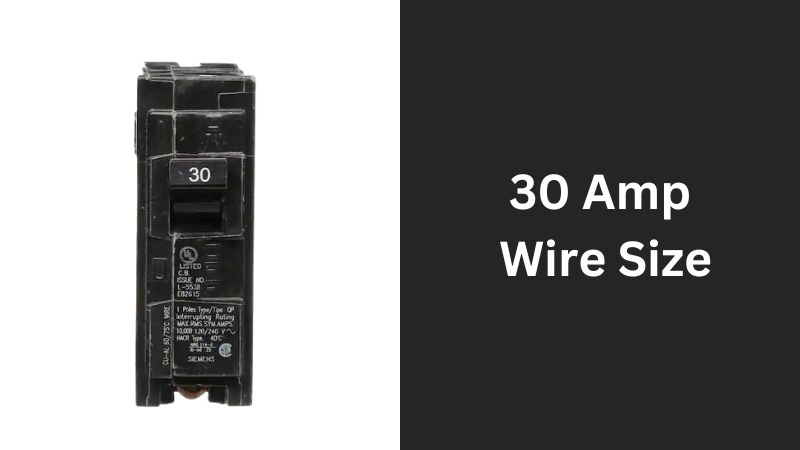

What is a 30 Amp Breaker?
A particular kind of circuit breaker that is frequently used in electrical distribution panels to guard against circuit overloading is known as a 30-amp breaker. In order to prevent damage to the wiring and connected devices, the “30 amps” indicates the maximum current that the breaker can handle before tripping and stopping the electrical flow.
When a larger electrical capacity is needed than with regular home outlets, such as for larger appliances like air conditioners, water heaters, or electric dryers, this kind of breaker is frequently used in a variety of applications. It is essential to maintaining the security and appropriate operation of electrical systems.
Types of a 30 Amp Breaker
1. Single-Pole Breaker
A single-pole breaker is a kind of circuit breaker that regulates the flow of electricity through a single circuit and takes up one slot in an electrical panel. Single-pole breakers handle 120-volt circuits, in contrast to double-pole breakers, which span two slots and manage two connected wires (usually for 240-volt appliances).
Smaller home appliances, outlets, and lighting frequently use these breakers. In the event of an overload or short circuit, they offer protection by cutting the circuit and averting possible harm to the devices and wiring. Single-pole breakers are essential parts of commercial and residential electrical systems that guarantee each circuit’s dependability and safety.
2. Double Pole Breaker
A double-pole breaker is a kind of circuit breaker that regulates the flow of electricity through two connected wires by taking up two adjacent slots in an electrical panel. Double-pole breakers are made for 240-volt circuits, which are typically used for more extensive appliances like electric stoves, dryers, and air conditioners.
Single-pole breakers are made to handle 120-volt circuits. In the event of an overload or short circuit, these breakers protect the circuit by simultaneously opening both of the hot wires. Double-pole breakers are necessary to control higher voltage appliances and maintain the safe and effective distribution of electrical power in both residential and commercial electrical systems.
Uses Of a 30 Amp Breaker
In many electrical applications, where a greater electrical capacity is needed than in typical home circuits, a 30-amp breaker is frequently utilized. Typical applications for a 30-amp breaker consist of:
- Big Appliances: For larger home appliances like electric water heaters, electric stoves, and dryers, a 30-amp breaker is typically installed. Higher electrical loads are often needed for these appliances, and a 30-amp breaker can manage the extra current.
- Air Conditioners: A 30-amp breaker is frequently needed for central air conditioning systems in order to meet the electrical needs of the compressor and other parts.
- Workshops or Garages: Workshops or garage spaces may be wired with 30-amp circuits to support power tools and heavy-duty equipment.
- Camper or RV Outlets: To meet the power needs of recreational vehicles (RVs) and campers, outdoor outlets or dedicated circuits are frequently fitted with 30-amp breakers.
- A Few Powerful Lighting Systems: Some lighting systems, particularly those requiring large amounts of power, might be connected to circuits that have 30-amp breakers protecting them.
It is imperative to remember that a licensed electrician must install a 30-amp breaker to guarantee both safety and code compliance and that the specific use of the breaker must adhere to local electrical codes. Overloading the breaker can result in electrical hazards and overheating.
How Many Outlets Can Be on a 30 Amp Breaker?
A 30-amp breaker’s maximum number of outlets is determined by all connected devices’ combined load or power consumption. The National Electrical Code (NEC) establishes standards for safe electrical installations in both residential and commercial electrical systems.
As a general guideline, you should only permit ten outlets (receptacles) on a 20-amp circuit and twelve outlets on a 30-amp circuit for general-purpose outlets. This is only a general estimate, and the precise amount might change depending on the particular needs and regional electrical codes.
To ensure that the load does not exceed the breaker’s capacity, it is imperative to consider the combined wattage of all the devices connected to the outlets. It might be necessary to reduce the number of outlets if you have high-powered devices in order to avoid overloading the circuit.
Speaking with a licensed electrician for accurate planning and electrical code compliance is advised. They can evaluate your installation’s particular needs and ensure it complies with safety regulations.
Things to Consider Before Adding Outlet
To guarantee safety, adherence to electrical codes, and optimal performance, a number of crucial factors should be taken into account before adding an outlet to an electrical circuit. Here are some important points to remember:
- Loading Circuit: Ascertain the circuit’s overall electrical load to make sure the breaker’s capacity isn’t exceeded. This entails figuring out the total wattage of all the circuit-connected devices.
- Type of Circuit: Determine if the circuit has a 15- or 20-amp load. Determining the maximum quantity and kind of outlets that can be added requires this information.
- Colour Codes: Learn the electrical codes and regulations in your area. Compliance with these codes is necessary for safety. See an electrician with a license if you’re unsure.
- GFCI Conditions: Ascertain whether Ground Fault Circuit Interrupter (GFCI) protection is necessary for the new outlet location. In places where water is present, like bathrooms, kitchens, garage outlets, and outdoor outlets, GFCIs are usually needed.
- Need for Voltage: Make sure the voltage requirements of the connected devices and the circuit’s voltage match. For instance, most homes have outlets that are 120 volts by default.
- Wire Gauge: Ensure the current wiring has a sufficient gauge to accommodate the extra outlet. Higher current loads require thicker wire (lower gauge number).
- Circuit Capacity: Recognize the circuit’s objective. Some circuits might be reserved for particular high-power appliances, so adding outlets might not be a good idea.
- Professional Installation: Take into account hiring a licensed electrician to install the outlets. Expert installation improves safety and guarantees code compliance.
- Location and Accessibility: Take accessibility and convenience into account when selecting a good site for the new outlet. If you don’t have moisture-resistant outlets, stay away from moist areas.
- Future Expansion: If you’re thinking about growing in the future, make sure the wiring and circuitry can handle more outlets without becoming overly large.
- Authorizing: In certain areas, adding outlets might need a permit. Find out from the local government whether a permit is required for the particular project you are working on.
By carefully thinking about these things, you can ensure that the outlets you add to your electrical system are safe and compliant with codes. When in doubt, seek professional advice from a licensed electrician.
What are the Consequences of Adding Multiple Outlets on a 30-Amp Breaker?
Without giving it due thought and following electrical codes, adding more outlets to a 30-amp breaker can have a number of unintended consequences, including safety risks and electrical problems. The following are some possible outcomes:
- Overloading the Circuit: The possibility of overloading the circuit is the leading cause of concern. A 30-amp breaker may overheat, damage wires, and even cause a fire hazard if the combined electrical load from the outlets and linked devices is greater than its capacity.
- The Breaker Tripping: The breaker is likely to trip frequently on an overloaded circuit. In addition to cutting off power to the linked devices, frequent tripping signals that the circuit cannot support the load.
- Dangers of Fire: Excessive heat from overloaded circuits can cause wire insulation to melt and present a fire risk inside the walls. The safety of the occupants and the property is seriously jeopardized by this.
- Drop in Voltage: Voltage drop can occur from adding too many outlets to a single circuit, mainly if the wiring is not large enough. Voltage drop can have an impact on connected devices’ functionality and result in problems like dimming lights and less efficient appliances.
- Violations of Code: There are severe repercussions, such as fines and penalties, for breaking electrical codes and regulations. Local codes should always be followed when doing electrical work to guarantee installation safety and legality.
- Devices That Are Connected: An unstable power supply or overheating may damage devices connected to the overloaded circuit. This may necessitate expensive repairs or replacements.
It’s crucial to properly plan and calculate the electrical load, abide by local electrical codes, and, if required, seek the advice of a licensed electrician in order to prevent these consequences. If more outlets are required, consider adding them to a different circuit with a suitable breaker size determined by the intended use and the required electrical load. An electrical installation that is safe and complies with codes is guaranteed by expert advice.
30 AMP Breaker – FAQs
Ans: In general, using extension cords or power strips on a 30-amp circuit is not advised. These gadgets might not be able to safely handle the higher current of a 30-amp circuit because they are made for lower amperage. In order to avoid overheating and potential fire hazards and guarantee the safe distribution of electrical power, it is imperative to use equipment that is compatible with the circuit’s capacity.
Ans: Depending on each appliance’s unique power needs, a 30-amp circuit can support a maximum of one simultaneous operation. A 30-amp circuit can usually handle multiple small to medium-sized appliances operating concurrently in residential settings. To ensure safe and effective operation, it is imperative to determine the combined wattage of all connected appliances in order to prevent overloading the circuit.
Ans: Mixing different amp-rated outlets on the same 30-amp circuit is not permitted. In order to guarantee appropriate protection and avoid overloading, every outlet on a circuit needs to have the same amp rating. Combining different outlet amp ratings can result in an uneven current distribution, which can be dangerous and potentially violate electrical codes. For an electrical installation to be both safe and compliant, outlet ratings must be consistent.
Ans: Most electrical codes don’t specify a maximum distance for outlets on 30-amp circuits. Generally speaking, though, outlets should be placed every 12 feet along the wall, with no point being more than 6 feet away from an outlet. This keeps the circuit from being overloaded by an excessive amount of distance while ensuring easy access to electricity.
Conclusion
In conclusion, it is critical to carefully assess the electrical load, follow local codes, and plan ahead before adding outlets to a 30-amp circuit. If these rules are broken, there may be circuit overloads, frequent breaker tripping, fire risks, and possible damage to connected devices. Speaking with a licensed electrician is best to ensure safety and compliance. They can evaluate the installation’s particular needs and make sure everything complies with electrical codes. This strategy guarantees a long-term, dependable, and effective electrical system in addition to protecting against possible hazards.
