When it comes to HVAC maintenance, having the right manifold gauge is paramount to measure refrigerant pressure and temperature in air conditioning and refrigeration systems, aiding in diagnosis and maintenance.
But with countless options flooding the market, finding the best HVAC manifold gauge can be daunting. That’s where our key factors come into play to simplify your search.
- Durability and Accuracy: The gauge must be robust and resilient to withstand demanding HVAC tasks, and provide accurate readings. For this, opt for high-quality gauges to ensure durability and longevity along with proper calibration.
- Compatibility: Consider compatibility with refrigerants like R-22 and R-410a, as older systems transition to newer ones. Choose an HVAC gauge capable of reading both refrigerants to accommodate this shift effectively.
- Type: It can be either analog or digital – Analog gauges are renowned for their durability, reliability, and less calibration needs. While a digital gauge has an electronic display and advanced features, yet often require frequent calibration and less durable.
Whether you’re a seasoned professional or a DIY enthusiast, our Top-Rated recommendations and in-depth “Buying Guide” will streamline your decision-making process. So, let’s dive in and find the perfect HVAC manifold gauge for your needs.
Best HVAC Manifold Gauges List
| Manifold HVAC Gauges | Type | Refrigerant Compatibility | Warranty | Buy Now |
|---|---|---|---|---|
| Yellow HVAC Manifold Gauges | Analog | R-22, R-410a, R-404a | 1 Year | Check On Amazon |
| Lichamp HVAC Manifold Gauges | Analog | R134A, R410A, R404A, and R22 | 1 Year | Check On Amazon |
| XtremepowerUS HVAC Manifold Gauges | Analog | R-22, R-410a, R-134a, R-12 | 2 Years | Check On Amazon |
| Testo 550s AC Manifold Gauge Set | Digital | R-134a, R-22, R-404a,R-410a | --- | Check On Amazon |
| BELEY Refrigeration Digital Manifold HVAC Gauge Set | Analog | R-134a | 1 Year | Check On Amazon |
| VEVOR AC Manifold Gauge Set | Analog | R-12, R-502,R-22 | 1 Year | Check On Amazon |
| LIYYOO HVAC Manifold Gauge Set | Analog | R-134a | 1 Year | Check On Amazon |
Best HVAC Manifold Gauges Reviews
1. Yellow HVAC Manifold Gauges
The Yellow Jacket is considered hands down, one of the best HVAC manufacturing companies. The company has provided several high-end pieces of equipment over the years. Their products are known for their durability and quality. The 42006 is the latest in their 41 Series.
The color-coded gauges are larger than their predecessors. The hoses are equipped for high-pressure, and they are rated for R-22, R-410a, and R-404a.
In terms of performance, it is great. Very accurate with (class 1) 1% accuracy. It means that even in critical charge systems, you will get an accurate reading.
The Yellow Jacket 42006 is an analog gauge. It is capable of handling 800 psi pressure maximum, and the weight is only 4 lbs. Hose length is 60 inches. Comes with 1-year craftsmanship and usability warranty.
Important Features:
- Color-coded scales.
- 1% accuracy.
- Works with multiple refrigerants.
- Durable brass body
Pros:
- Works with multiple refrigerant types.
- One of the best brands in the market
- Color-coded scales.
- Very accurate
- Easy to read
Cons:
- The carrying case is not included.
- There are no low loss hoses.
- Adapters are not included.
2. Lichamp HVAC Manifold Gauges
The professional automotive air conditioning diagnostic manifold gauge set from LICHAMP brand is compatible with different refrigerants that include R134A, R410A, R404A, and R22.
This kit is suitable for evacuation, charging, diagnostic check and recovery work. It has a convenient four valve design that includes extra long 5 feet cord in 4 pieces with different color for easy identification.
It is ideal for professional auto mechanics the kit includes all the necessary equipment for ac charging work. The metal part of the tools is made from durable brass and aluminum, so it is quite heavy-duty.
The package includes ACME adapter, tank adapter, valve core remover, 4-way diagnostic gauge, 5FT colored hose, rubber coated partner, and adjustable quick coupler.
Important Features:
- Heavy-duty construction
- Extra-long colored hoses
- Convenient four valve design
- Wide range of applications
Pros:
- Works perfectly with accurate readings
- Heavy-duty storage case
- Good quality
- Suitable for auto mechanics
Cons:
- Hoses don’t screw smoothly
3. XtremepowerUS HVAC Manifold Gauges
The 4 way AC manifold gauge by XtremepowerUS is one of the most complete kits available on the market. It has the best gauge in the market. The gauges are durable, made of brass, and the 5 feet longs hoses make it very convenient to use.
The gauges are dampened with silicone, and they are pretty accurate. But the hoses are pretty generic. So, it is best if you pick up a few low-loss fittings. The hoses are rated for R-22, R-410a, R-134a, and R-12.
The durability is everything for this gauge. It is also easy to read. The gauges also come with clear plugs to finely tune the gauge when needed.
The XtremepowerUS is an analog gauge. Its maximum capacity is 800 psi and comes weighing 4 lbs. Each hose has a length of 60 inches. And it comes with 2 years parts and service warranty.
Important Features:
- Addition of shut off valves
- Quick disconnect feature.
- Works with multiple refrigerants.
- Durable brass body
Pros:
- The brass is durable and lasts for years.
- Silicone dampened gauges are extremely accurate.
- Sight glass.
- Color-coded hoses.
Cons:
- The hoses need to be changed.
- Amateurs will have difficulty to use this set.
4. Testo 550s AC Manifold Gauge Set
The Testo 550s AC manifold gauge set stands as a digital marvel, dedicated to precise temperature and pressure measurements across diverse HVAC systems, refrigeration units, and heat pumps.
Featuring a generously sized backlit display, Bluetooth connection, and user-friendly menu navigation, it ensures effortless operation even in dimly lit environments, granting unfettered access to all functions.
Crafted to surpass industry benchmarks, its robust housing (protection class IP54) guarantees unwavering data acquisition in demanding conditions. Its suspension hook and a 2-way valve block with three connections enable convenient servicing and maintenance.
Complemented by 2 wired temperature probes and a protective case, this digital manifold facilitates accurate measurements and streamlined system analysis. You can control, upload new refrigerants, and navigate all the data via smartphone through its app.
Important Features:
- Accurate temperature and pressure measurements
- Large backlit display and intuitive menu
- Robust construction for durability
- Inclusion of 2 wired temperature probes
- All its data is available in a single App
Pros:
- Reliable measurements for various systems
- Easy operation with a user-friendly interface
- A sturdy build ensures longevity
- Enhanced versatility with temperature probes
Cons:
- Occasional connectivity problems with electromechanical gauge hose
- Some experience leakage issues with gauge hose.

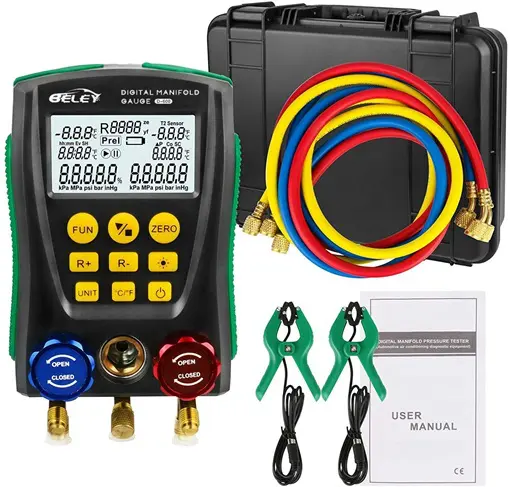

5. BELEY Refrigeration Digital Manifold HVAC Gauge Set
The BELEY HVAC System Gauge Set is a crucial tool for HVAC professionals, offering advanced functionality for installation, testing, and maintenance tasks.
With double pressure testing and dual temperature measurement capabilities, it ensures comprehensive system analysis with precision and efficiency. Equipped with a built-in database containing 89 refrigerant profiles, this gauge set simplifies the identification and handling of various refrigerants, enhancing operational efficiency.
Its user-friendly design features a large LCD display with backlight support, ensuring clear visibility in any lighting conditions. Constructed with durability in mind, the gauge set utilizes high-strength engineering plastic and flexible silicone for long-lasting reliability.
Despite its rugged build, the ergonomic design ensures comfort during prolonged use, making it a practical and indispensable addition to any HVAC technician’s toolkit.
Important Features:
- Double pressure test and dual temperature test capabilities
- Built-in database with 89 refrigerant profiles for easy reference
- Calculates subcooling and superheat for precise system analysis
- Large LCD display with backlight for clear visibility
- Durable construction with high-strength engineering plastic and flexible silicone
- Multiple modes for accurate readings and perfect functioning
Pros:
- Versatile functionality suitable for various refrigeration tasks
- Easy-to-read display enhances usability in different environments
- Robust build quality ensures reliability and longevity
- 32-bit digital processing unit with high-precision data acquisition
- Built-in refrigerant database simplifies operation and troubleshooting
Cons:
- There might be a bit of inaccuracy with temperature sensors and pressure readings
- The quality of electromechanical gauges would have been better.
6. VEVOR AC Manifold Gauge Set
The VEVOR 4 Way AC Gauge Set is a versatile tool compatible with R134A, R22, R12, and R410A refrigerants, making it suitable for automotive and household air conditioning maintenance.
Its four reinforced PVC hoses, each measuring 5 feet in length, can withstand pressures up to 800 psi, reducing the risk of leakage during operation. Crafted from solid brass, aluminum, PVC, and plastic, this gauge set ensures durability and sealing for prolonged use.
Accurate and precise gauges with ±1.6% accuracy and Fahrenheit temperature units provide easy and reliable readings, while the sight glass design allows for visual monitoring of refrigerant flow during filling.
It integrates with the latest advancements to deliver efficient and effective solutions for every task, thanks to its cutting-edge technology. Its user-friendly design with intuitive controls ensures ease of use and convenience for users.
Important Features:
- Compatibility with multiple refrigerants.
- Reinforced PVC hoses for durability.
- Accurate gauges with sight glass design.
- Sturdy construction for longevity.
Pros:
- A versatile tool for various HVAC maintenance tasks.
- Accurate gauges and durable hoses ensure reliable performance.
- The complete set includes all necessary accessories for hassle-free operation.
Cons:
- The quality of seals on the hose connections is not up to the mark.
7. LIYYOO HVAC Manifold Gauge Set
The LIYYOO Manifold Gauge Set is a professional solution designed for HVAC, diagnostic checks, and car air conditioning maintenance. The gauges are recalibrated easily in the field to maintain accuracy.
These 60-inch long hoses, available in yellow, blue, and red, feature a working pressure of 800 PSI and a burst pressure of 4000 PSI, ensuring durability and safety during operation.
Crafted for easy installation and operation, these hoses provide strong sealing for reliable performance. Its heavy-duty hook ensures hanging the manifold gauge properly in place. The set meets 1/4″ SAE requirements for refrigerant permutation, accommodating most standard refrigerants like R410A, R22, and R404.
The manifold gauge set includes built-in sight glass, durable metal casing, and 2 quick couplers for enhanced durability. Its solid brass connectors ensure proper connectivity without any leakage issues.
Important Features:
- 60-inch long hoses with 800 PSI working pressure.
- Designed to meet 1/4″ SAE requirements for refrigerant permutation.
- Manifold gauge set with built-in sight glass and durable metal casing.
- Versatile option suitable for various HVAC and car air conditioning maintenance tasks
- Quick disconnect couplers and a 45-degree angle on the service port site for easier access.
Pros:
- Strong sealing ensures durability and safety during operation.
- Designed for easy installation and operation.
- Compatible with R410A, R22, and R404 refrigerants.
- Best value for money option
Cons:
- The gauge’s accuracy is questionable in some cases.
- Lack of instructions might impact its ease of use.
Buying Guide For The HVAC Manifold Gauges
When seeking to invest in the best Manifold HVAC Gauges, simply choosing a brand won’t suffice. Several factors, including gauge type, quality, compatibility, features, price, and more, must be carefully considered to ensure the right choice is made.Here are some essential considerations to keep in mind:
1. Compatibility with Refrigerants
HVAC systems vary in the refrigerants they use, with older systems typically using R-22 and newer ones transitioning to R-410a. So, the first thing to check is the compatibility of the manifold gauges with the refrigerants you’ll be working with. Ensure that the gauges support the refrigerants commonly used in your industry, such as R134A, R410A, R22, and R404A. Select the one that can read pressures for the specific refrigerant your system operates on.
2. Gauge Type
Gauge type impacts usability and accuracy. There are three main types of gauges available in the market.
- Analog gauges offer affordability and long-term accuracy without any need for frequent calibration but may be challenging to read.
- Digital gauges are popular and provide easier readability but require frequent calibration and are costlier.
- Bluetooth gauges, though pricier initially, offer convenience through mobile app operation without any need for a physical gauge on the manifold.
3. Accuracy and Precision
Accuracy is paramount when working with HVAC systems. Look for manifold gauges that come pre-calibrated or offer easy calibration processes to ensure precise and reliable readings for accurate diagnosis and maintenance of refrigeration systems. Gauges with calibrated dials and accurate pressure sensors are preferable.
4. Display Quality
Opt for gauges with high-quality displays, regardless of type. Glass covers are preferred for durability, scratch resistance, and readability, especially in outdoor conditions, while plastic covers may be prone to scratches, and require frequent replacements.
5. Durability and Build Quality
HVAC work can be demanding, so durability is essential. Opt for gauges made from high-quality materials like brass, aluminum, and steel, which can withstand the rigors of daily use. Ensure that the set is well-constructed and has sturdy components, including manifold, gauges, and hanger (O-rings inside) to withstand pressure and environmental factors. High-quality materials and robust design contribute to longevity, making them a preferred choice.
6. Ease of Use and Ergonomics
Working with HVAC systems often involves complex tasks, so choose gauges that are user-friendly and easy to operate. Look for features like ergonomic handles, clear and intuitive displays, and easy-to-adjust valves. Angled hoses can make working with compressor units more manageable and comfortable, especially while using them in tight spaces. These factors can contribute to smoother workflow and increased efficiency.
7. Versatility and Functionality
Consider the versatility of the manifold gauges and whether they offer additional functionalities beyond basic pressure readings. Features like built-in sight glasses, temperature measurement capabilities, and compatibility with accessories can enhance the versatility and functionality of the gauges.
8. Additional Features
Some gauges offer extra features like automatic superheating or sub-cooling calculations, anti-blowback hoses, sighting glasses, and various adapters. These additional features can streamline tasks and improve overall performance.
9. Portability and Storage
Depending on your work environment, portability may be a crucial factor to consider. Look for compact and lightweight manifold gauges that are easy to transport between job sites. Additionally, consider options with convenient storage solutions, such as carrying cases or hooks for easy organization.
10. Value
Lastly, consider the overall value of the product, including the price, warranty, brand reputation, customer reviews, and customer service offered by the manufacturer before selecting the manifold gauges.
Verdict: By considering these key factors, you can make an informed decision and choose the best HVAC manifold gauges to meet your specific requirements. Remember to prioritize accuracy, durability, type, and ease of use to ensure efficient and effective maintenance of HVAC systems.
HVAC Manifold Gauges – FAQs
Ans: HVAC manifold gauges are typically compatible with various refrigerants, including R134A, R22, R410A, and R404A, among others.
Ans: It depends on personal preference and specific needs. Analog gauges are preferred by some professionals for their reliability, while digital gauges offer easier readability and advanced features.
Ans: It’s recommended to calibrate HVAC manifold gauges annually to ensure accurate readings and optimal performance.
Ans: Yes, many HVAC manifold gauges are versatile and can be used for automotive HVAC systems, making them suitable for a wide range of applications.
Ans: Regularly clean the gauges, hoses, and fittings, store them properly, and follow the manufacturer’s instructions for maintenance and calibration to ensure longevity and accuracy.
Ans: Yes, HVAC manifold gauges are commonly used for refrigerant recovery, evacuation, and recharging processes in air conditioning and refrigeration systems.
Ans: Always wear appropriate protective gear, handle refrigerants carefully, and follow industry safety guidelines to prevent accidents and ensure personal safety during HVAC maintenance tasks.
Conclusion
In assessing HVAC Manifold Gauges, it becomes evident that while digital gauges offer readability, they often suffer from susceptibility to damage and frequent errors. Conversely, analog gauges, renowned for their efficiency and reliability, emerge as the preferred choice among professionals. Although Bluetooth gauges present a promising solution, their initial cost may deter many buyers. Hence, analog gauges currently stand out as the optimal option for most users.
Our curated selection of the finest HVAC manifold gauges available, and guide offers comprehensive details and features to aid your decision-making process. However, should you still find yourself grappling with the choice or need any further assistance, don’t hesitate to reach out to us in the comments section below. We are committed to assisting you in making a well-informed purchase.
