10 Best Cabinet Hardware Jig Reviews in 2024

If you are a professional carpenter, you need to have all the important tools so that your work can be accurate and faster. If you are going to install handles, knobs, and pulls in cabinets, doors, and drawers, instead of manual measurement, you can use a cabinet hardware jig so that the operation gets faster. This is because hardware jigs not only let you get the measurements precisely but also help in accurate drilling thanks to its metal drilling holes.

Apart from professional carpenters, homeowners can use a hardware jig for easy installation of handles and knobs wherever required. Most homeowners have a drilling set, and they can use a hardware jig for accurate cabinet installation. We have picked the best cabinet hardware jigs, and you should check out the following parameters while purchasing a cabinet hardware jig.

  • Material Construction – The construction of a cabinet hardware jig determines its durability as well as stability during operation. You should always opt for a cabinet hardware jig that has metal construction. You will come across plastic cabinet hardware jig sets as well but you should avoid them if most of the parts are plastic.
  • Ruler Length – A cabinet hardware jig comes with two rulers in general. One is a horizontal ruler, and the other is a vertical ruler. The length of the rulers can determine the application of the hardware jig. Generally, the horizontal ruler is 40 cm while the vertical ruler is 20 cm. Anything smaller than these lengths can restrict application and prevent the installation of locks for doors and windows.
  • Drilling Guide Hole – You are buying a hardware jig not just for getting the measurements for the installation of handles but also to assist in accurate drilling. However, the drilling guide hole should be suitable for drill bits by which you can drill to install handles, knobs, and pulls. Generally, a 5mm drilling guide hole is the standard for cabinet hardware jig. However, the more guide holes, the more versatile the applications will be.

There are several such parameters one has to watch out for while purchasing a cabinet hardware jig set. That is why we have put together a detailed buying guide so that you can make your decision wisely. You can also use these parameters to compare the cabinet hardware jig sets and purchase the one that can fulfill your requirements. In order to help you pick the best jig set, we have handpicked the best cabinet hardware jigs with different features and specifications. Check out their features, benefits, and drawbacks for better understanding and selection.

Best Cabinet Hardware Jig 2024

Best Cabinet Hardware JigMaterialRuler LengthDrilling Guide HoleBuy Now
Tourace Cabinet Hardware JigAluminum + ABS Plastic40cm+25cm5mmCheck On Amazon
True Position Tools Original Cabinet JigHardened Aluminum32cm+20cm5mmCheck On Amazon
King&Charles Cabinet Hardware JigStainless steel +  aluminum and ABS plastic40cm+25cm5mmCheck On Amazon
Dahoo Cabinet Hardware Jig ToolStainless Steel + Plastic40cm+25cm5mmCheck On Amazon
ASCENDAS Cabinet Hardware JigAluminum + ABS plastic40cm+25cm5mmCheck On Amazon
TBVHOMM Cabinet Hardware JigStainless steel +  aluminum and ABS plastic40cm+25cm3mm, 4mm  and 5mmCheck On Amazon
Vicrays Cabinet Hardware JigStainless steel40cm+25cm5mmCheck On Amazon
MinliGUY Cabinet Hardware JigAluminum Alloy40cm+25cm5mm and 4.2 mmCheck On Amazon
Neitra Cabinet Hardware JigAluminum alloy + steel40cm+25cm5mmCheck On Amazon
SUNCONY Cabinet Hardware JigAluminum Alloy40cm+25cm5mmCheck On Amazon

Best Cabinet Hardware Jig Reviews

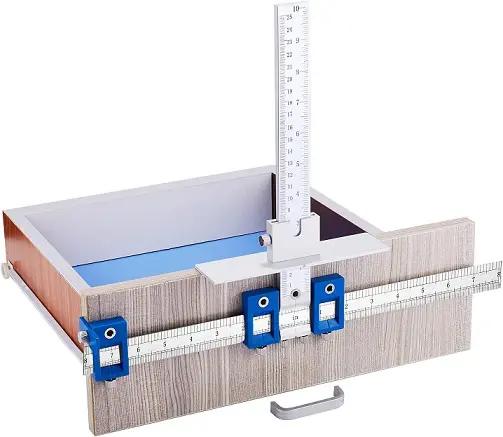

1. Tourace Cabinet Hardware Jig

Tourace Cabinet Hardware Jig

Tourace has been a popular brand in the hardware tools segment with a wide range of products for home improvement. Tourace Cabinet Hardware Jig has been equally popular in the online market with extremely high ratings and positive feedback from genuine users.

The cabinet hardware jig has alloy steel, aluminum as well as ABS plastic construction to make the product lightweight and budget-friendly. In spite of the ABS plastic slider, the product is sturdy and suitable for heavy-duty work.  The ruler material has stainless steel construction where markings are engraved to prevent fading.

It comes with a quick-release setup for simple but faster operation. In fact, due to its high precision and easy adjustment, it is suitable for a wide range of applications starting from installing door and drawer handles to door and window lock. It is suitable for making 5mm drill holes.

Best Features

  • Alloy steel and aluminum construction for sturdiness.
  • Stainless steel ruler material for heavy-duty usage.
  • Lightweight for easy carry and fits your budget.
  • Quick-release structure for faster operation.

Pros

  • Simple to set up and operate.
  • Designed for faster installation.
  • Easy adjustment and enhances accuracy.

Cons

  • ABC plastic parts may not be very durable.

Buy Now From Amazon

2. True Position Tools Original Cabinet Hardware Jig

True Position Tools

True Position Tools has been in the business of manufacturing hardware tools for over 25 years. Hence, the brand has high reliability and popularity. True Position Tools Original Cabinet Hardware Jig is the highest-rated cabinet hardware jig on our list. The brand claims to provide 10 times more precision than its competitors.

The precision is at such a high-level thanks to its patented calibration system. The laser-engraved rulers make the hardware jig the most accurate set available. Moreover, its robust structure eases the adjustments so that you can set it up perfectly before drilling operation. The reversible drill template also enhances the speed of operation without the need for repeated adjustments.

Apart from the usual applications, you can use the hardware set for installing hinge plates and pin holes. The hardware set has hardened aluminum construction which gives it tensile strength and durability. The brand offers 60-day free replacement and a lifetime warranty on the bushing. You also get a hard carrying case to store all items perfectly.

Best Features

  • Patented calibration system for high accuracy.
  • Hardened Aluminum construction for durability.
  • Patented spacing screws for stability.
  • Reversible design for faster operation.

Pros

  • Anodized laser-engraved rulers with clear markings.
  • 10 times more accurate than most hardware jig sets.
  • Notches for quick adjustments and centering.

Cons

  • The rulers are slightly short.

Buy Now From Amazon

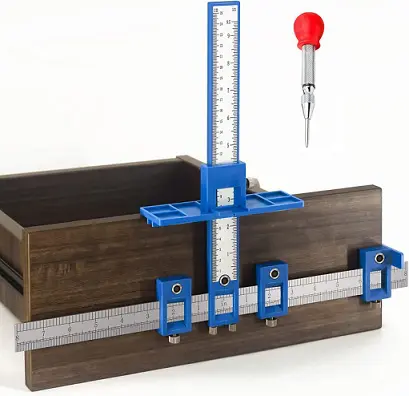

3. King&Charles Cabinet Hardware Jig

King&Charles

King&Charles is a popular brand in the hardware jig segment, and this is the best-rated cabinet hardware jig from the brand. The jig has premium construction, but it is light in weight. It has more versatile applications than most hardware jigs.

The ruler has stainless steel construction for corrosion resistance and high toughness. The tick marks are highly durable and accurate. The reversible template is suitable for quick measurements and drilling. You can make adjustments using sliders, and the quick-release block makes operation faster. There is an automatic center hole punch included to mark the points for drilling holes.

Coming to its application, you can use the hardware jig for the installation of handles and pulls for drawers, cabinets, and doors. You can also install hinges and shelves. In fact, you can use the jig for cabinet rails and shaker cabinets as well as recessed drawers. All the parts are detachable for easy portability. You also get a storage bag to keep the items safely.

Best Features

  • High precision and corrosion resistance construction.
  • Accurate positioning with stainless steel rulers.
  • Comes with automatic center hole punch.
  • Multi-purpose template for all cabinet types.

Pros

  • Designed for easy setup and quick operation.
  • Storage bag to keep detachable parts perfectly.
  • Wide range of applications for all cabinets.

Cons

  • You have to use front clamps for adjustments.

Buy Now From Amazon

4. Dahoo Cabinet Hardware Jig Tool

Dahoo Cabinet Hardware Jig Tool

Dahoo has been in the home improvement tools market for some time now, and they are popular for its reliable products. Dahoo Cabinet Hardware Jig Tool is the best product from the brand, and it is strong and durable. Therefore, contractors and professional carpenters use it for years comfortably.

The hardware jig has a perfect combination of stainless steel, aluminum, and plastic. The combination of the materials makes the product strong and corrosion-resistant. The jig set is suitable for high precision, and it is easy to use. It can enhance your operational speed as well as accuracy.

You can adjust the slider and measure perfectly for drilling work. The stainless steel ruler has inch and mm scales. You can split the jig into multiple parts so that you can carry it easily. There is also a storage bag where you can carry all the parts perfectly.

Best Features

  • Perfect combination of materials for construction.
  • High precision and faster speed of operation.
  • Portable size with easy storage bag.
  • Distinct blue parts for easy visibility.

Pros

  • Highly durable and corrosion-resistant.
  • Reversible structure for repeated usage.
  • Easy to set up and adjust.

Cons

  • ABS plastic parts could have been replaced by metal parts.

Buy Now From Amazon

5. ASCENDAS Cabinet Hardware Jig

ASCENDAS Cabinet Hardware Jig

ASCENDAS is a highly renewed brand with a wide range of products for home improvements. Among their hardware jig products, ASCENDAS Cabinet Hardware Jig is the best-selling product. The jig set is highly sturdy and easy to use for everyone including amateur homeowners.

The hardware jig set has aluminum and ABS plastic construction which enhances durability and makes the set corrosion-resistant. You can choose from inch or metric ruler as per your requirements of measurements.  The quick-release drill guide helps to detach the parts and carry them easily. Moreover, you can make adjustments for measurement quickly.

You will find a storage bag to keep all the items perfectly and carry from one place to another easily. The jig set is perfect for professionals as well as amateurs working on DIY projects. It belongs to the heavy-duty hardware jig set, and it enhances faster operation in drilling holes for handles and pulls.

Best Features

  • Aluminum alloy construction for durability.
  • Highly adjustable structure for quick operation.
  • ABS plastic parts for corrosion resistance.
  • Detachable parts to carry in a portable

Pros

  • Dual metric and inch calibration for better measurement.
  • Storage bag to place all the detachable items properly.
  • Wide range of applications for handles and knobs installation.

Cons

  • Some people have complained about accuracy.

Buy Now From Amazon

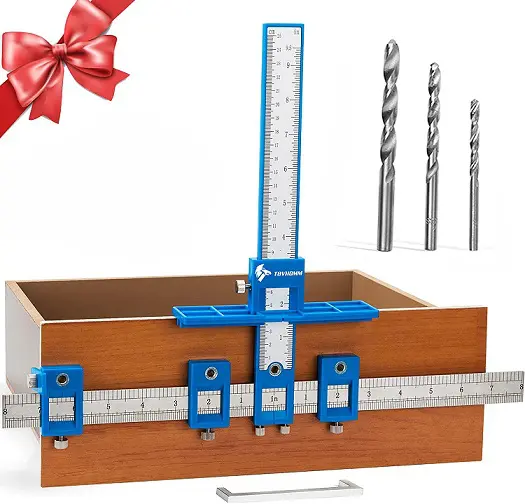

6. TBVHOMM Cabinet Hardware Jig

TBVHOMM Cabinet Hardware Jig

TBVHOMM is a reliable brand in hardware tools, and TBVHOMM Cabinet Hardware Jig is the best product from the brand. The set is designed for professionals as well as amateurs as it is easy to set up and operate. You can make adjustments as per your requirements and drill holes accurately.

The hardware jig has a perfect mix of stainless steel, aluminum, and ABS plastic. Stainless steel gives hardness and strength while aluminum gives corrosion resistance and high precision. The drill guide parts are removable, and you can carry all the parts easily. There is also a storage bag provided to keep all things intact and enhances easy portability.

You get a 2-in-1 millimeter and inch scale ruler that is made of stainless steel. You can fit in 3 different drill bits namely 3, 4, and 5mm. The hardware jig set is suitable for the installation of handles and pulls in cabinet doors and rails. You get complete instructions for accurate installation and quick drilling. The company also has a customer support team to help out the customers when required.

Best Features

  • Aluminum and stainless steel construction.
  • ABS plastic parts smoothen out the edges.
  • Stabile for fitting 3mm, 4mm, and 5mm drill bits.
  • Dual metric scale for precision and efficiency.

Pros

  • Quick measurement and drilling saves time.
  • Suitable for professionals and amateurs.
  • Easy adjustment with the turning screw.

Cons

  • Some parts have ABC plastic construction.

Buy Now From Amazon

7. Vicrays Cabinet Hardware Jig

Vicrays Cabinet Hardware Jig

Vicrays has become a reputed brand in home improvement tool products. Vicrays Cabinet Hardware Jig is a unique product from the brand where you do not have to use clamps for installation. In fact, you can reverse it on both sides for quick drilling just by flipping the jig and keeping the settings intact.

The hardware jig set has stainless steel construction that enhances strength and toughness. You can quickly make adjustments and drill holes with high precision. Thanks to its clamp-less design, you can use it on all pieces of wood works and get the job done perfectly. You can set up the set quickly to get started with the operation.

In fact, it is the best hardware jig set for homeowners as it does not need professional experience to set it up and operate efficiently. You can measure and drill perfect holes and it cuts the time for installation. You will find a hardware jig along with an Allen key and a storage box to keep all items in their places.

Best Features

  • Stainless steel construction for high strength.
  • Quick-release drill block for faster operation.
  • Unique design for reversible drilling.
  • Versatile applications for clamp-less operation.

Pros

  • Inch and centimeter system rulers for versatility.
  • Storage box to keep all items including Allen key.
  • 2-year warranty on the product shows durability.

Cons

  • The product does not come with instructions.

Buy Now From Amazon

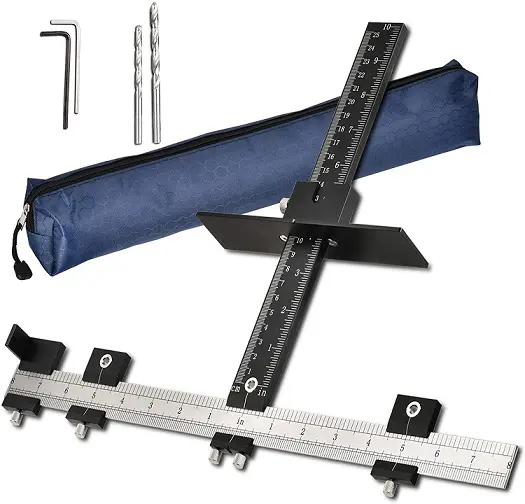

8. MinliGUY Cabinet Hardware Jig

MinliGUY Cabinet Hardware Jig

MinliGUY is a relatively new brand in the market, and they have gained a significant market share with their cabinet handle jig sets. MinliGUY Cabinet Hardware Jig clearly stands out thanks to its metal construction and versatile applications. The jig set is suitable for 5mm and 4.2mm drill holes.

The hardware jig has all-metal construction. The level bar has strong stainless steel material while the vertical bar and the rest parts have aluminum alloy construction. Therefore, it is extremely strong and durable. There are two drilling guide holes available such as 5mm and 4.2mm. Hence, you can mount pulls, knobs, and handles on doors, drawers, and cabinets.

The metal rulers have inch and metric scales, and the jig set is easy to put together. You can accurately place the jig and efficiently mount the handle. In the package, there are two drill bits available, and you will also find an extra set of fittings. The zippered bag is perfect for storing all the items perfectly.

Best Features

  • Aluminum alloy construction for durability.
  • Hardened stainless steel bushings provide stability.
  • Two different drilling holes for versatile applications.
  • Laser-carved metal rulers with inch and metric.

Pros

  • High precision for efficient installation.
  • Extra drill bits and set of fittings.
  • Storage bag to keep everything in place.

Cons

  • The tolerance level could have been better.

Buy Now From Amazon

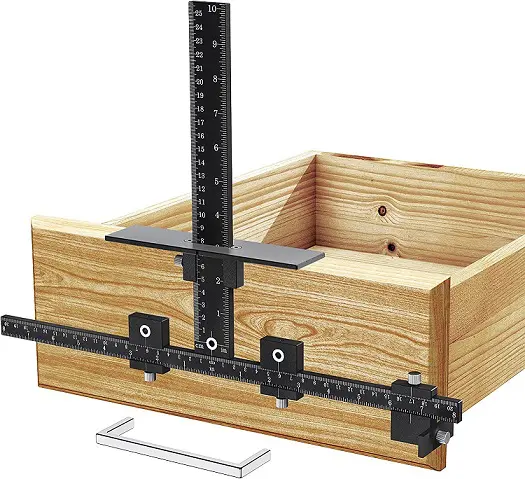

9. Neitra Cabinet Hardware Jig

Neitra Cabinet Hardware Jig

Neitra has a wide range of products in the tools & home improvement category. Neitra Cabinet Hardware Jig is the best hardware jig set from the brand. The jig is extremely accurate and durable, and it is suitable for professionals and homeowners.

The hardware jig has high-grade and aircraft-grade aluminum material construction. The level of tolerance is 0.0002 inch while it is manually calibrated to 0.001 inch square. Coming to the bushings, it has hardened steel construction for durability and stability during operation. On top of that, the adjustable drill guide is strong while the rulers have laser engraving.

The hardware jig is easy to set up and faster to operate. You can avoid the mistakes in marking and drilling for handles, knobs, and pulls. In fact, this hardware jig is suitable for the installation of hinge plates and locks. The company has upgraded its product for smoother edges and offers a 120-day return and replacement window.

Best Features

  • Stronger anodized aluminum construction for durability.
  • Hardened steel bushings for withstanding vibrations.
  • Upgraded smoother edges for safe operation.
  • Easily adjustable and highly accurate.

Pros

  • Easy to set up and operate for professionals.
  • Distinct black body for better visibility.
  • 120-day return and replacement offer.

Cons

  • May need constant retightening in long-duration work.

Buy Now From Amazon

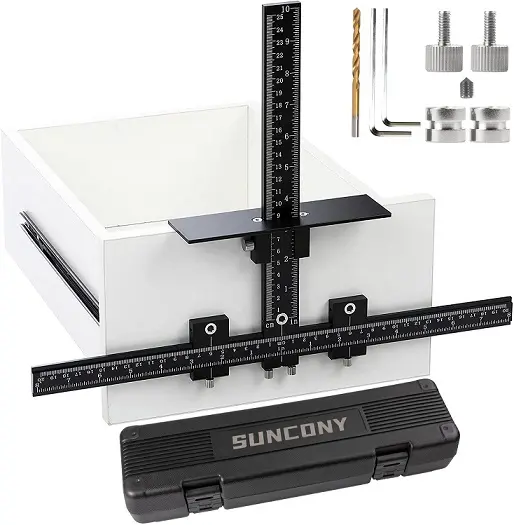

10. SUNCONY Cabinet Hardware Jig

SUNCONY Cabinet Hardware Jig

SUNCONY is a well-known brand in the hardware tools industry. SUNCONY Cabinet Hardware Jig is highly useful in the installation of cabinet and door drawer handles and pulls. You can make drills with the jig accurately and precisely for easy installation and disassembling.

The hardware jig has superior aircraft-grade aluminum construction which makes the product durable. Besides, the hardened steel replaceable bushings can withstand heavy-duty drilling. You will find two extra bushings in the package for replacement and extending the lifespan of the jig. Moreover, the laser-carved rulers do not fade with regular usage.

The hardware jig enhances the speed and accuracy of hardware installation. The professional template tool for wood drilling prevents mistakes during installation. The tool is equally useful in measuring the hole as well as drilling the hole. It can withstand the vibration of drilling and prevent deflection in drilling holes. It has tolerance of 0.0002-inch and calibration of 0.0001-inch square.

Best Features

  • All metal construction for high tolerance and durability.
  • High hardened bushings to prevent deformation.
  • Reinforced screws for stability during vibration.
  • Laser-engraved ruler for precision and clear reading.
  •

Pros

  • Removable and replaceable parts for easy carry and long-life.
  • Inch and centimeter scale with horizontal and vertical scale.
  • Wide range of applications for hardware installation and disassembling.

Cons

  • Takes some time to use the product in different hardware installations.

Buy Now From Amazon

Buying Guide For Best Cabinet Hardware Jigs –

A cabinet hardware jig has become essential in the installation of cabinet handles, knobs, and locks. But you should ensure that you purchase a durable and reliable cabinet hardware jig that can have versatile applications. You must have seen that the hardware jigs are quite similar yet slightly different in certain parameters.

Without proper understanding, you can easily end up buying a cabinet hardware jig that may not be suitable for your application. Therefore, even though we have picked the best hardware jigs for you, you have to decide which one is best for you. That is why we are putting forward a detailed buying guide to judge the products and choose the perfect cabinet hardware jig for you.

Material Construction

The first thing to check on a cabinet hardware jig is the material with which it is constructed. There are various materials from which cabinet hardware jig sets can be made. If you are looking for a super cheap hardware jig set, you could opt for ABC plastic jig. But you should never go for plastic jig or jigs with the majority parts of plastic.

You should always opt for all-metal construction when it comes to a hardware jig set. Starting from hardened and aircraft-grade aluminum to hardened stainless steel, different metals have different properties. All metal construction ensures high durability and stability while you are drilling for the installation of handles. The aircraft-grade aluminum is the best for precision, accuracy, as well as durability.

Ruler Length

The ruler length varies from one hardware jig to another. There are basically two rulers, namely horizontal and vertical. Both the rulers are equally important in terms of their sizes. The longer the rulers, the wider their applications will be. If you have short rulers, you cannot install handles if you have large drawers and cabinets.

Ideally speaking, the horizontal ruler should be 40 cm at least, and the vertical ruler should be 25cm. If it is slightly smaller, it won’t be a huge problem. At the same time, a longer ruler means it will take up more space while carrying or storing the set. Depending on your applications such as installing locks on doors and drawers may need a jig set with longer rulers.

Drilling Guide Hole –

The drilling guide hole is an extremely important part of the cabinet hardware jig. It is the hole through which you place the drill bit to make drills to the marked and required part of the object. If the drill guide hole is not of accurate size, you cannot put in the drill bit and perform the operation. Ideally speaking, a drilling guide hole in a hardware jig is 5mm.

However, there are some hardware jig sets available where you will find more than one bushings. You have to also check for the material of the drilling guide hole. The one with the hardened stainless steel is the best because it can sustain the vibration, and the lifespan can be long. Moreover, you have to check if the bushings are replaceable as you cannot use one bushing for long.

Package –

You have to check the items that are there in the package. Usually, the ruler, the start and end stops, and the cabinet hardware template are available. However, there are many cabinet hardware jigs you will find in the market where you will find extra pieces like drill bits and extra sets of fitting.

Most importantly, you will find a proper storage bag or box to keep all the pieces perfectly. You should always opt for the cabinet hardware jig set where there are more pieces available in the package.

Frequently Asked Questions –

1. How do you use a cabinet hardware jig?

First, measure the width of the drawer and divide it by 2 to find the center of the drawer. Place the jig along the center of the drawer and hang from the top for support. Adjust the slider so that the bushings are at the pace where you want to install the handle.
Measure the handle width and divide by two and adjust the left and right sliders as per the result after division. Place the handle in the slider holes to ensure the handle can go through easily after drilling. Tighten the screws and start drilling through the bushing for accurate holes and install the handle.

2. Why should I use a cabinet hardware jig?

A cabinet hardware jig is a common tool that every carpenter uses. You should use a hardware jig so that the placement of the handles, pulls, and knobs can be accurate. If you do it manually, there is always a chance of wrong measurements and over-drilling which can hamper the aesthetic and lead to improper installation. Cabinet hardware jig ensures precision and accuracy and you can install faster than ever.

3. What can you install with a cabinet hardware jig?

You can install drawer handles, door handles, door and window locks, drawer knobs, and door pulls. In fact, you can install hinge plates with a suitable cabinet hardware jig. Wherever drilling work is necessary on a plain surface to install small objects of even width, you can use a cabinet hardware jig for accurate and faster installation.

Conclusion –

A hardware jig set is essential for the accurate installation of pulls, knobs, and handles on doors, windows, cabinets, and drawers. Installation becomes super easy when you have a hardware jig because you can eliminate the manual guessing and operation. The amount of error and inefficiency decreases completely. However, you have to ensure that you purchase the best cabinet hardware jig set.

We have already selected the best cabinet hardware jig sets for you. We have also provided you with a detailed buying guide so that you can understand which cabinet hardware jig set is perfect for you. However, if you are still confused which one to go for, we are providing some recommendations to help you out.

  • If you are looking for a cabinet hardware jig set for professionals where accuracy is extremely important, True Position Tools Original Cabinet Hardware Jig is the best set. The patented calibration system of the jig makes it the most accurate cabinet hardware jig currently. You can get 10 times more accuracy and the aerospace-grade, hardened aluminum enhances durability. In fact, it is the only hardware jig that is suitable for shaker cabinets.
  • If you are looking for a complete cabinet hardware jig set, Vicrays Cabinet Hardware Jig is definitely the best set. The jig has stainless steel construction for strength and toughness. You can operate with full precision and efficiency. You get an elegant storage box to keep all the pieces of the set perfectly, including the Allen key that is included in the package. The hardware jig set is surely going to save your time in installation by 80%.
  • If you are looking for a cabinet hardware jig set where there are multiple drilling guide holes available, MinliGUY Cabinet Hardware Jig is the best option you have. This is because you can fit in 5mm and 4.2mm drill bits easily. The set comes with different pieces and fittings and you also get a storage bag to keep all things in place. The hardware bit has aluminum alloy construction for stability and durability of the set.
